Setup Automated Backup

This guide explains how to set up automated backups for the Apex Home Application Dashboard using N8n. The backups are uploaded to Google Drive, and a notification is sent back to Apex Home.

Prerequisites​

  1. Ensure you have N8n installed and running Documentation.
  2. Set up Google Drive credentials in N8n.
  3. Obtain an API key for Apex Home Documentation.

Steps​

1. Create a New Workflow​

  1. Open N8n and create a new workflow.
  2. Add the following nodes to the workflow:

a. Schedule Trigger Node​

  • Select the Schedule Trigger node from the list of available nodes.
  • Configure the desired interval for the backup schedule.

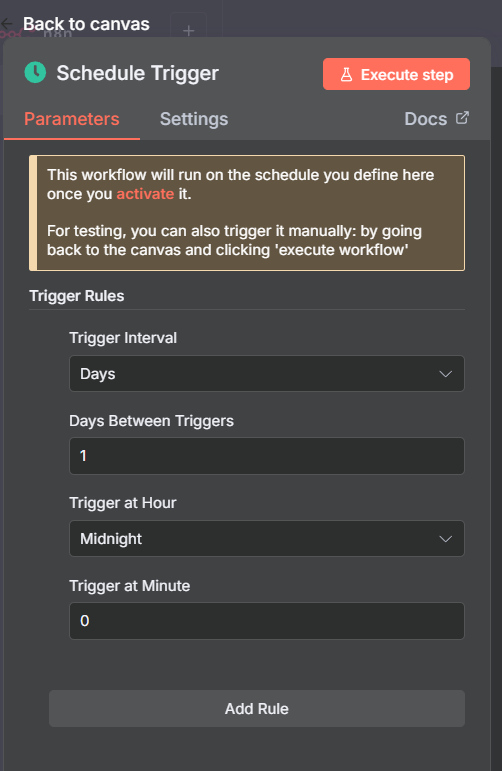

Schedule Trigger

b. Backup Apex Home Data Node​

  • Select the Apex Home node from the list of available nodes. Select Backup Apex Home Data from Actions.
  • Configure the following parameters:
    • Credential to connect with
    • Resource: Settings
    • Operation: Backup
    • Backup Password: Enter your own password
  • Use your Apex Home API key for credentials.

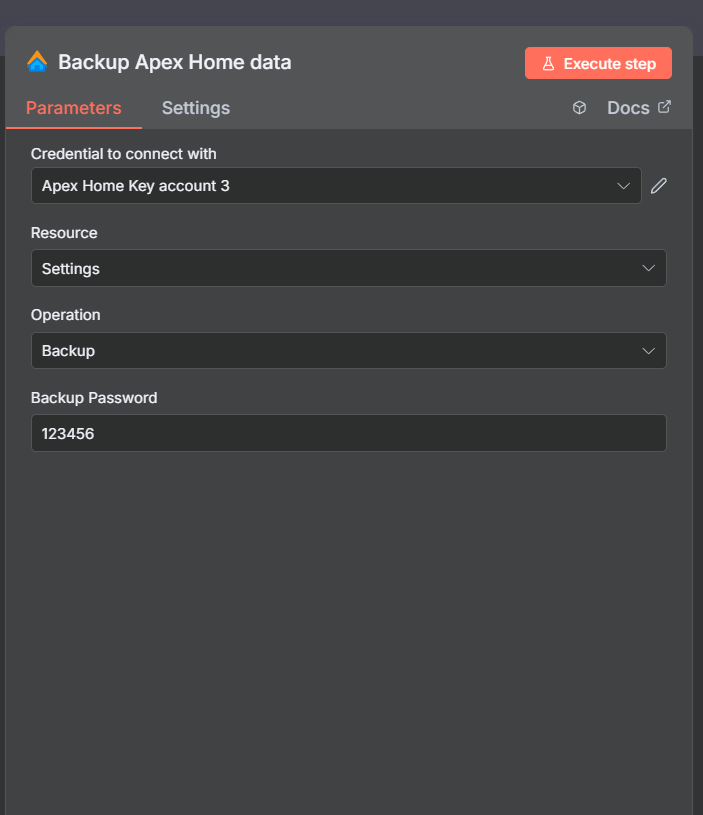

Backup Node

c. Upload File to Google Drive Node​

  • Select the Google Drive node from the list of available nodes.
  • Configure the following parameters:
    • Credential to connect with
    • File Name: backup-{{ $now.format('yyyy-MM-dd-HH-mm-ss') }}.apex or anything else that suits you.
    • Parent Drive: 'Select your parent drive here'
    • Parent Folder: Select your parent folder here
  • Use your Google Drive OAuth2 credentials.

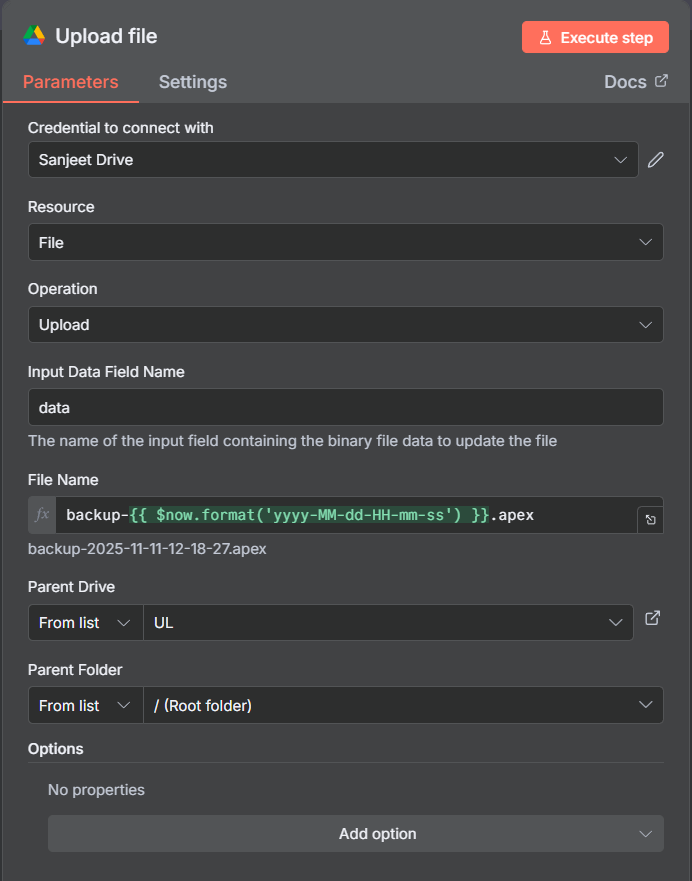

Backup Node

d. Send Notification to Apex Home Node​

  • Select the Apex Home node from the list of available nodes.
  • Configure the following parameters:
    • App Name: Apex Backup
    • Title: Daily Backup Created
    • Text: Daily backup created and uploaded to Google Drive
    • HTML: Daily backup created and uploaded to Google Drive. Click the button below to check
    • Tags: Apex Home, Personal, Drive, Backup, Automation
    • Button Text: Check Now
    • Button Link: ={{ $json.webViewLink }}
  • Use your Apex Home API key for credentials.

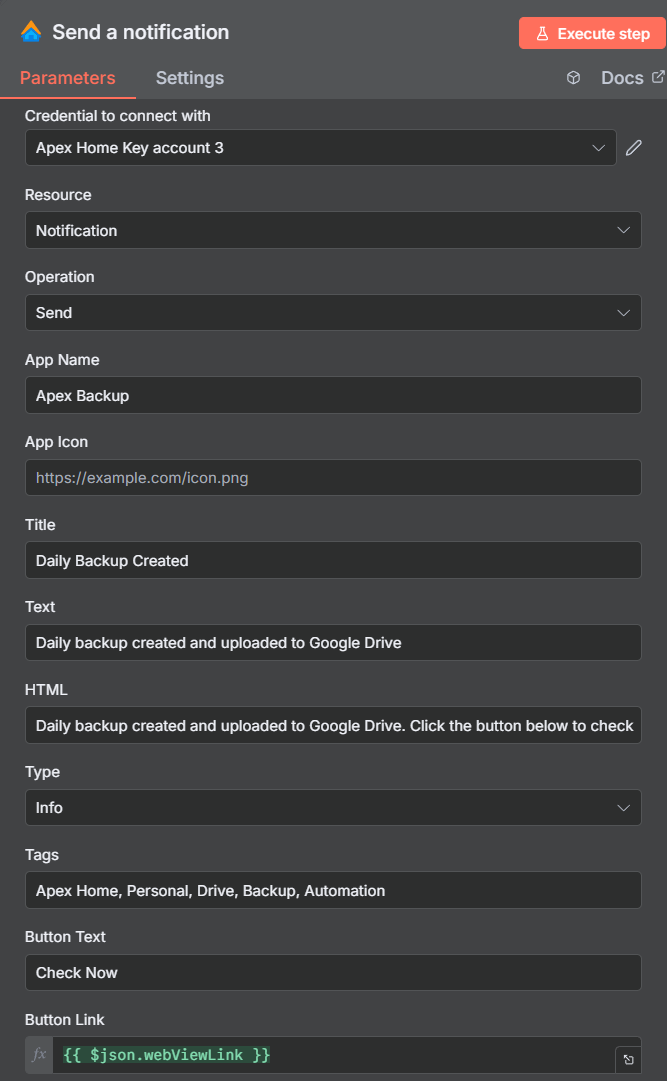

Notification Node

2. Connect the Nodes​

  • Connect the Schedule Trigger node to the Backup Apex Home Data node.
  • Connect the Backup Apex Home Data node to the Upload File to Google Drive node.
  • Connect the Upload File to Google Drive node to the Send Notification to Apex Home node.

At this p;oint your workflow should look like this:

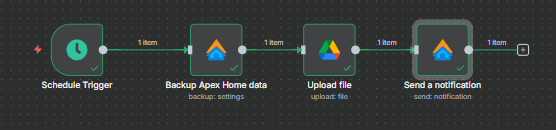

Backup Workflow

3. Activate the Workflow​

  • Once all nodes are configured and connected, activate the workflow.

Follow these steps to ensure your backups are automated and secure.
